Rainwater | Rainwater collector-reservoir | Angers

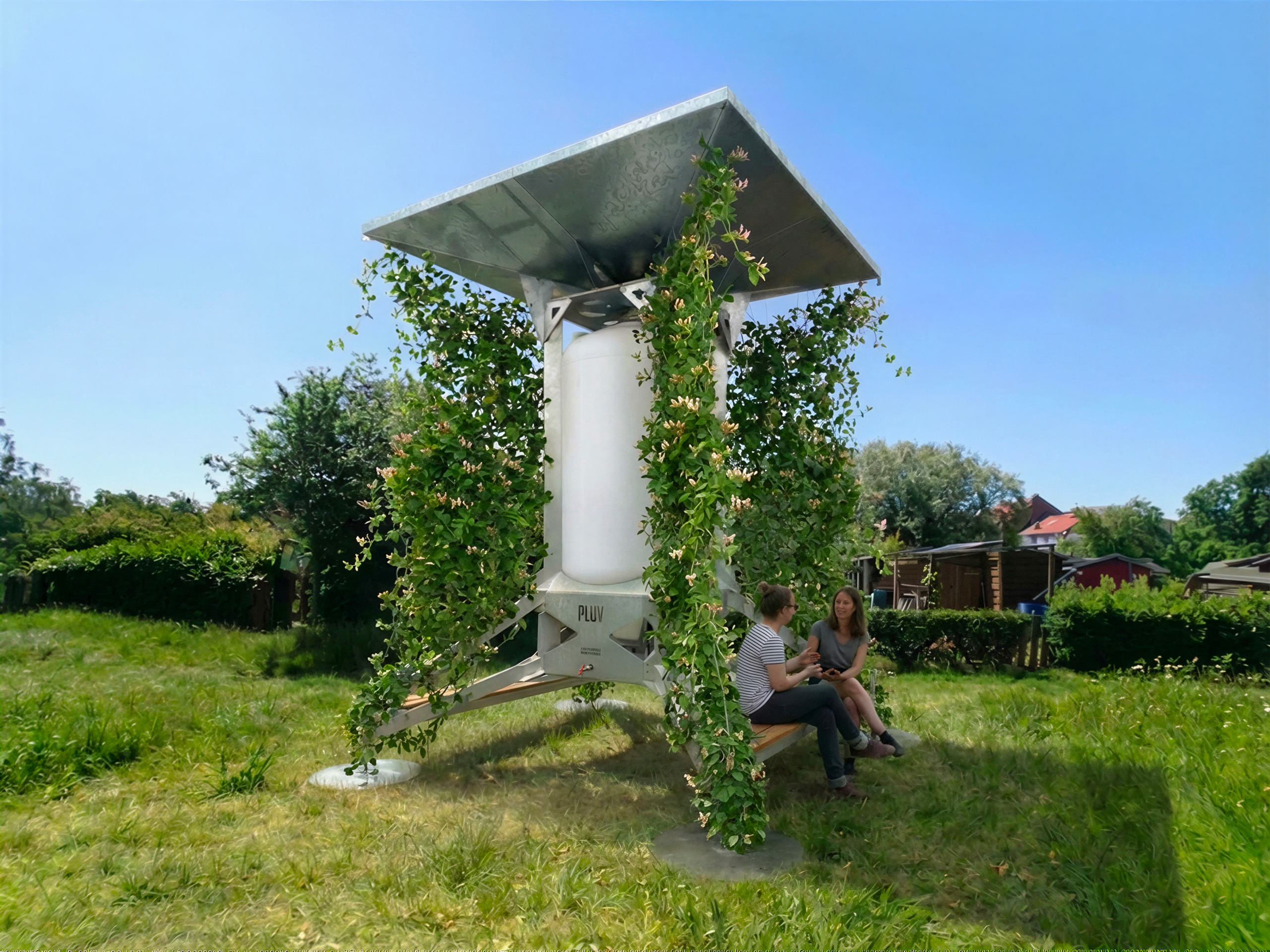

PLUV, a collective rainwater collector-reservoir installed within the shared gardens of Hauts de Saint Aubin in Angers

PLUV

Self-contained rainwater harvesting tank with integrated canopy and polyethylene cistern. Installs directly on natural ground without foundations, stabilized by stakes. Automatic frost protection. Lockable valve, integrated overflow drain. Built-in benches on each side. Designed for allotments, vegetable gardens, and green spaces.

Categories: Collector, Local authorities, Rainwater, Rainwater collector, Tank

Description

PLUV is a self-contained rainwater harvesting system designed for allotments and community gardens. It combines an 8m² canopy-collector with a robust 2000L polyethylene tank that installs directly on the ground, without foundations or connections. The collected water is used to irrigate vegetable gardens or green spaces, thus reducing drinking water consumption. The system includes an automatic frost drain, an overflow drain for excess water, and a lockable valve for secure access. Benches are integrated on each side, making PLUV a shaded social gathering place in the garden.

A self-contained rainwater collector without infrastructure

The PLUV is installed directly on natural ground without foundations or excavation. Wide, staked base plates ensure its stability in windy or inclement weather. The overflow drain automatically directs excess water to the desired location, and the system purges itself in case of freezing to protect the tank.

Safety and everyday use

A lockable valve controls access to the water, which is particularly useful in community gardens or shared spaces. Integrated benches on either side transform the PLUV into a shaded resting place, going beyond its primary function of water storage. Already deployed in Angers, the PLUV is a benchmark for local authorities looking to equip their community gardens.

Financial assistance available

Installing a self-contained rainwater harvesting system may be eligible for financial assistance depending on the region. For residents of the Île-de-France region, visit adaptaville.fr to learn about available programs. You can also check with your local council or regional authority. To complete your installation, explore our full range of Ekovore rainwater harvesting solutions.

Technical characteristics

FAQ

Frequently Asked Questions

What is the storage capacity of the PLUV?

2000 liters.

Does the PLUV require a roof or a building to function?

No. That’s its main distinguishing feature. The PLUV incorporates its own collector canopy — it collects rainwater directly without relying on an existing roof. Therefore, it can be installed anywhere in a garden, outdoors.

How is the PLUV protected against frost?

The system incorporates an automatic anti-freeze purge which empties the tank below a certain temperature threshold, thus protecting the tank and pipes from damage related to winter freezing.

Is it possible to secure access to water in a shared garden?

Yes. The valve is equipped with a padlock that allows you to control and restrict access to the water according to the user. This feature is particularly useful in community gardens or spaces shared by several households.

What is the difference between PLUV and ROSILUV?

ROSILUV is a self-contained 4.3 m² collector-funnel that attaches to a 1000-liter IBC water tank—it is designed to maximize the collection area and can be installed on the ground or on a rooftop terrace. The PLUV is an all-in-one system that integrates a collector canopy, cistern, and benches in community or allotment gardens.

Are there any financial aids available for purchasing the PLUV?

Yes, it depends on the region. In Île-de-France, there are programs to help with rainwater harvesting through the adaptaville.fr platform. Other local authorities also offer subsidies—check with your town hall or local council before making a purchase.
